With the increasing application of HD video equipment, many problems have arisen in the wiring process, such as high wire cost and short service life. If the on-site protection is not enough, the trampling of the passing crowd may affect the performance of wire, and even cause a live broadcast accident. This program provides a more convenient and safe solution for live video scenes. Its long-distance transmission multi-frequency channel support, coupled with the high-capacity lithium battery system, i.e., PNP configuration, can fully meet the needs of various indoor and outdoor shooting, especially the feature of free wiring, which will bring you a safer and more professional enjoyment.
Highlights
- Up t0 250m/800ft transmission range (LOS)
- Up to 1080p 60
- HDMI input and output
- Support up to 4 smart devices for monitoring
- Additional 2-channel audio output
- Compact and portable design, lightning-fast deployment
- Support NP-F series battery (NP-F9XX/F7XX/F6XX/F5XX)
- 1-year warranty serviced in North America.

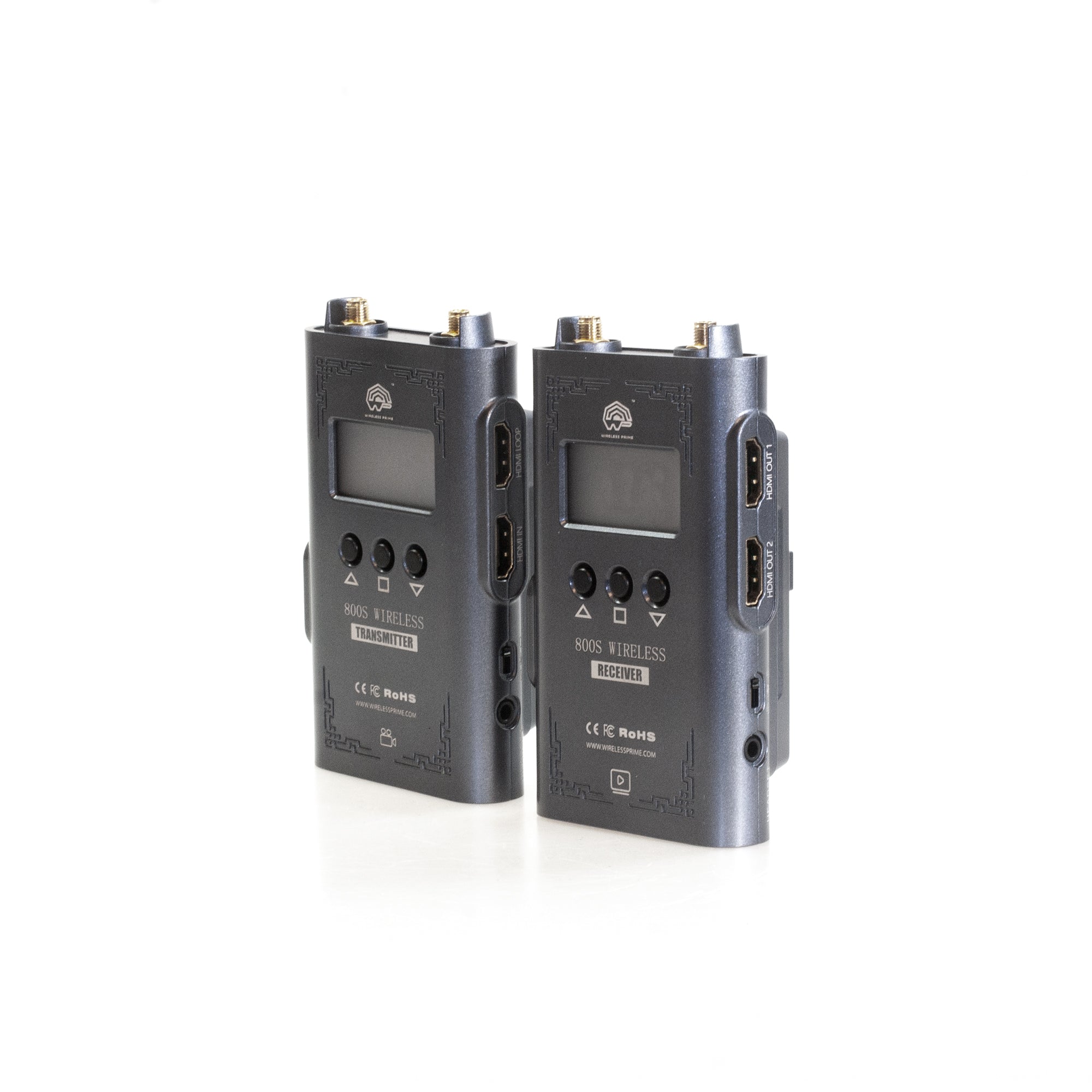

TX:
| Item: | Data |
| Antenna Mode: | 2x2 MIMO |
| Operating Frequency: | 5GHz |
| Resolution: | 720p50/59.94/60，1080p23/24/25/29.97/30/50/59.94/60,1080i50/59.94/60 |
| Input: | HDMI, Line in |
| Transmission Distance: | 800ft |
| Latency: | 60~70ms |
| Operating voltage: | DC 7~36V |
| Product Size: | 100*68*22.5mm |
| Audio Format: | PCM |
| Power consumption: | ≤6W |
| Weight: | 163g |
| Temperature: | -10~50℃（Working）;-20~80℃（Storage） |
RX:
| Item: | Data |
| Antenna Mode; | 2x2 MIMO |
| Operating Frequency: | 5GHz |
| Resolution: | 720p50/59.94/60，1080p23.98/24/25/29.97/30/50/59.94/60,1080i50/59.94/60 |
| Output: | HDMI |
| Transmission Distance: | 800ft |
| Latency: | 60~70ms |
| Operating voltage: | DC 7~36V |
| Product Size: | 100*68*22.5mm |
| Audio Format: | PCM |
| Power consumption: | ≤5.2W |
| Weight: | 163g |
| Temperature: | -10~ 50 C (Working); - 20 ~ 80 C (Storage) |
