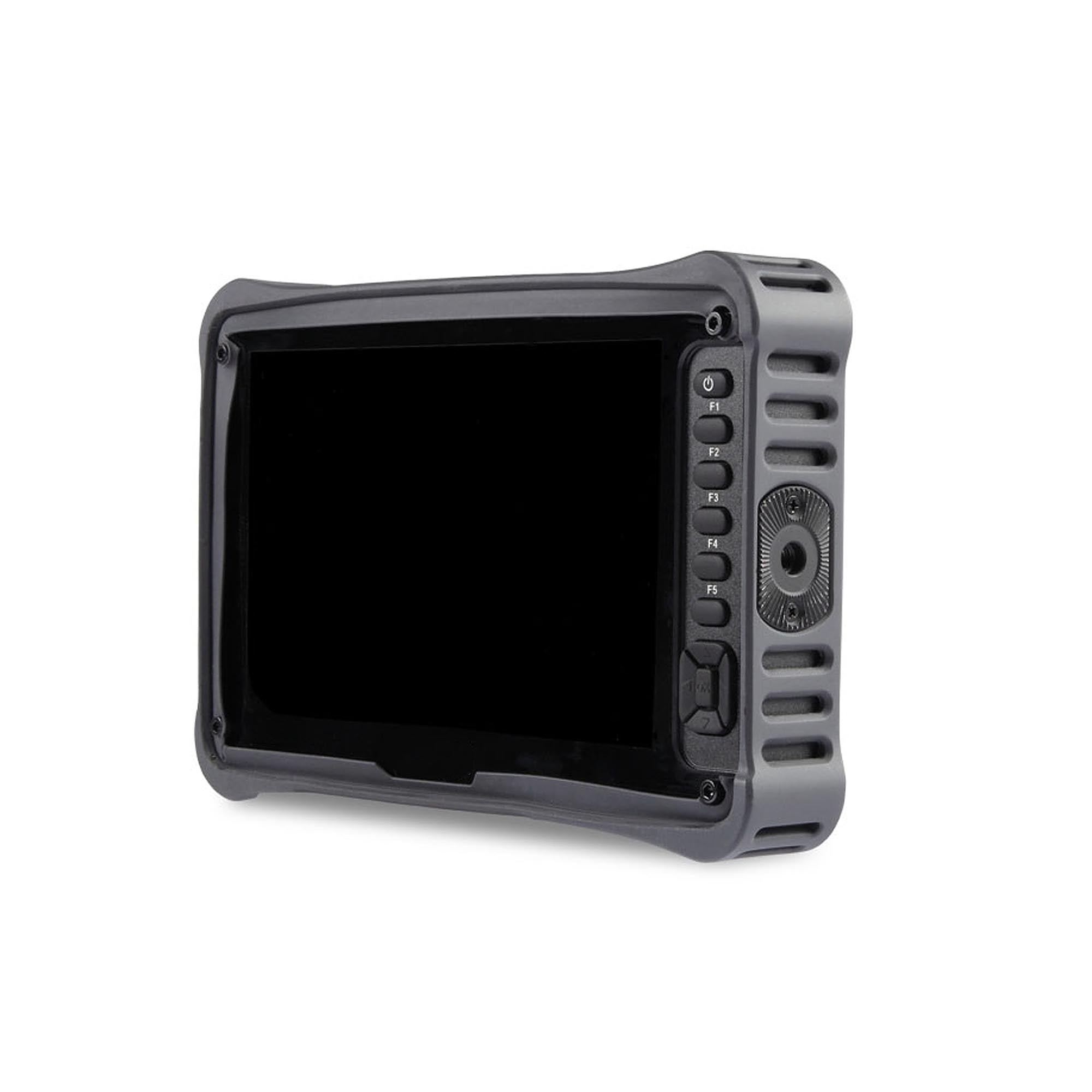

Ruige 7' LCD HD On Camera 3G-SDI/HDMI Monitor

Features:

• Resolution: 1024x600: The monitor has a resolution of 1024 pixels in width and 600 pixels in height.

• Brightness: 1000cd/m2: This is the monitor's brightness level, measured in candelas per square meter (cd/m²). A high brightness level ensures good visibility even in bright lighting conditions.

• Contrast: 850:1: The contrast ratio measures the difference between the brightest and darkest parts of an image. A higher contrast ratio typically means better image quality.

• Response Time: 10ms: This is the monitor's response time, indicating how quickly pixels can change colors. A 10ms response time is suitable for general video playback.

• Viewing Angle: H150°/V145°: The viewing angle specifications describe the monitor's visibility from horizontal (left/right) and vertical (up/down) directions.

• Back Light: WLED (White LED): The monitor uses a white LED backlight, providing uniform and energy-efficient illumination.

• Input Voltage: AC100~240V 50/60Hz: The monitor supports a wide range of input voltages, making it compatible with different power sources.

• Output Voltage: DC12V: This is the output voltage of the monitor, typically used for powering other devices or accessories.

• Power Consumption: ≤20W: The maximum power consumption of the monitor is indicated here.

• Outer Size: L195H116.2D24mm: These are the physical dimensions of the monitor in millimeters, indicating its width, height, and thickness.

• Weight: 0.57kg: The monitor weighs approximately 0.57 kilograms, making it lightweight and portable.

• Features: The monitor offers a range of features, including:

  • Self-defined Safety Marker: Allows users to define safety markers for framing and composition.
  • Embedded Audio: Supports embedded audio signals.
  • Peaking Focus: Assists in achieving sharp focus.
  • Zebra: Aids in exposure monitoring by highlighting overexposed areas.
  • Supports Interlace and Progressive Signal Formats: Compatible with both interlaced and progressive video signals.
  • Luminance Waveform, Headroom, and Footroom Waveform: Provides waveform displays for detailed image analysis.
  • False Color: A visual aid for exposure and color correction.
  • Rapid Positioning of Out-of-Luminance Range: Helps quickly identify areas with incorrect luminance levels.
  • Supports 3D LUT Color Calibration: Enables precise color calibration using 3D Look-Up Tables.
  • Capable of Loading Six 1D or 3D-LUT: Allows users to load and apply custom color profiles.
  • B/W, Blue Only: Provides display modes for black and white and blue-only viewing.
  • SDI 1/1.001 Frame Rate Compatible: Compatible with standard SDI frame rates.
  • HDCP 1.1/HDMI 1.4: Supports HDCP (content protection) and HDMI 1.4, allowing monitoring of 4K signals.
  • 16x Channel Audio Meter (8x Channel, Optional): Displays audio levels for up to 16 channels (optional 8 channels).
  • Operational Key Lock Function: Prevents accidental changes to monitor settings.
  • Battery Meter (14.4V Lithium Battery): Monitors the charge level of a 14.4V lithium battery.
  • Time Code: Displays timecode information.
  • Image Film Automatically: Automatically applies image film characteristics.
  • Frame Grabbing: Allows capturing frames from the video signal.
  • Anamorphic De-squeeze Function (1.3x, 2.0x): Corrects distorted images when using anamorphic lenses.
