Our new Professional Kits are designed for the professionals that use our products. Including upgrades that you need to complete your job. Upgraded set of cloverleaf antennas which are 5G optimized, as well offering our best range panel antenna and all protected by rugged Pelican Protector cases
Highlights
- Cloverleaf antennas which offer increased range
- Includes rugged Pelican Protector case to protect your kit
- Wireless HD video transmission kit, SDI and HDMI up to 1080p 60fps 10-bit 4:2:2.
- Broadcast video and audio up to 700 meters/2297 feet (line of sight) over 5GHz frequencies.
- Time Code supported.
- Transmit to up to 4 receivers (of any Ghost-Eye model) on separate channels with <1ms latency.
- Increased range
- 1-year warranty serviced in North America.
Main Features of Cinegears Ghost-Eye 300m Video Transmission Suite
- 5GHz ISM Band wireless HD video transmission > 300m (980ft) depending on line of sight.
- HDMI and SD/HD/3G SDI input and output.
- Supports up to 3D 1080p/60Hz resolution, HDMI/HD-SD/3G-SDI 4:2:2, 10bits color depth.
- Signal status indicators for power, video, and receiver RSSI.
- AES-128/256 encryption with air interface HD video data stream.
- Supports multiple channel switching and broadcast mode for 1 transmitter to multiple receivers.
- HDMI 1.3 with EDID support.
- Supports Timecode, LUT, start/stop sync.
- Uncompromised picture quality with very low latency <1ms.
- Wide range power voltage input, suitable for most kinds of camera batteries.
- Plug & Play- full hardware design, no software is required.
- Standard V-mount, Variety mount, or 1/4″ bolt.
- Any input and output ports with ±8 kV ESD protection level (HBM, contact discharge).
Overview
The Cinegears Ghost-Eye wireless video transmission systems have become an essential tool on numerous film sets worldwide. These systems offer cutting-edge features and technologies that cater to the needs of professionals in the film and television industry. Here are the key highlights of the Ghost-Eye wireless video transmission systems:
-
Compact Transmitters and Receivers: Despite their compact size, Ghost-Eye transmitters and receivers are packed with advanced features, making them versatile tools for filmmakers.
-
High-Speed Transmission: These systems offer industry-leading speeds for sending video and audio signals, ensuring that your content is delivered quickly and efficiently.
-
Point-to-Multipoint Topology: The built-in point-to-multipoint topology allows you to transmit signals not only from A to B but also to multiple destinations (C, D, E, etc.), enhancing flexibility on set.
-
Zero Compression: Ghost-Eye systems deliver video and audio signals with zero compression, preserving the quality of your content. You can trust that your footage will maintain its integrity.
-
Exceptional Video Quality: Your signals are transmitted with 10-bit, 4:2:2 color depth, ensuring stunning visuals at resolutions up to 1080p and frame rates of up to 60fps.
-
Wide Compatibility: Ghost-Eye systems are compatible with a wide range of SDI and HDMI outputs, making them suitable for various cameras and devices.
-
Multi-Receiver Support: You can use up to four Ghost-Eye receivers of any model simultaneously, allowing you to distribute signals to multiple destinations.
-
Warranty and Support: Ghost-Eye units come with a 1-year warranty and a firmware upgrade guarantee to ensure they continue to perform at their best. The manufacturer provides troubleshooting support over the phone or via email, ensuring that you have the assistance you need.
Ghost-Eye 300M Wireless Video Transmission kit
The Cinegears Ghost-Eye 300M Wireless Video Transmission System is an efficient solution designed to simplify video transmission without the need for complex cabling. It includes a Ghost-Eye Wireless Video Transmitter 300M and a Ghost-Eye Wireless Video Receiver 300M, offering up to 300 meters of high-fidelity, uncompressed HD video transmission. Here are the key features and components:
Ghost-Eye Wireless Video Transmitter 300M:
- Input: Accepts SDI/HDMI input from digital cinema cameras, HD SDI video cameras, and other digital devices.
- Antennae: Equipped with 5 external paddle antennae with RPSMA sockets.
- Transmission Range: Provides high-fidelity, uncompressed HD video transmission with a range of up to 300 meters (approximately 980 feet).
- Frequency: Utilizes frequencies between 5.1-5.9GHz, and supports up to four simultaneous channels.
- Video Quality: Offers industry-leading video quality, supporting up to 3D 1080p/60Hz resolution with 10-bit color depth (4:2:2).
- Compatibility: Compatible with both 3G and HDMI inputs and outputs.
- Ease of Use: Designed for ease of operation, making it accessible to users with varying levels of technical expertise.
- Simple and Elegant Design: Cinegears prioritizes effective, reliable, and affordable solutions with a focus on simplicity and elegance in design.
Ghost-Eye Wireless Video Receiver 300M:
- Output: Provides SDI/HDMI output with dual output support.
- Antennae: Includes 2 external paddle antennae with RPSMA sockets.
- Transmission Range: Receives high-fidelity, uncompressed HD video with a range of up to 300 meters.
- Frequency: Utilizes frequencies between 5.1-5.9GHz and supports up to four simultaneous channels.
- Video Quality: Ensures exceptional video quality with low latency.
- Compatibility: Compatible with both 3G and HDMI inputs and outputs.
- Professional Quality: Offers professional-grade video transmission for enhanced project quality.
- Versatile Pairing: Can be paired with any Ghost-Eye transmitter for flexibility in configuring your setup.
Installation Details and Cautions
Transmitter Installation Instructions:
-
Antenna Installation: Install 2 omni-directional, high-efficiency antennas to the transmitter's SMA male antenna connectors.
-
Mounting Options: The transmitter has 3 1/4-20 screw nuts located on its surface, rear, and bottom. You can use a 1/4 screw to attach an ISO518 hot-shoe converter to fix the transmitter onto the camera.
-
Battery Installation: If your product model includes a battery buckle option, install the battery into the battery buckle. Ensure that the battery model matches the battery buckle type.
-
Power Source: Alternatively, you can use a subsidiary LEMO 4-pin male to D-Type receptacle power cable to provide power input from an external power source.
Receiver Installation Instructions:
-
Antenna Installation: Install 5 omni-directional, high-efficiency antennas to the receiver's SMA male antenna connectors.
-
Mounting Options: The receiver has a 1/4-20 screw nut on its surface side. You can use a 1/4 screw to attach a subsidiary metal hook to secure the receiver.
-
Battery Installation: If your product model includes the option of battery buckles, install the battery into the battery buckle. Ensure that the battery model matches the battery buckle type.
-
Power Source: Similar to the transmitter, you can also use a subsidiary LEMO 4-pin male to D-Type receptacle power cable to obtain power input from an external power source.
Specifications
| Transmitter | Receiver | |
| Interface | SDI Input(BNC Female); HDMI Input(Type A female); 2 Antenna port(PR-SMA male); DC input(4 pin LEMO female) | SDI Output(BNC Female); HDMI Output(Type A female); 5 Antenna port(RP-SMA male); DC input(4 pin LEMO female) |
| Supply Voltage Range | 6.5-16.8V DC | 6.5-16.8V DC |
| Transmission Distance | up to 700m/2296 ft | up to 700m/2296 ft |
| Power Consumption | <6.5W | <6W |
| Size | (L x W x H):120 x 70 x 25mm (does not include antennas) | (L x W x H): 160 x 110 x 25mm |
| Mass Weight | 380g | 540g |
| Input Video Format | SDI:3G,HD SD-SDI(Auto/Manuel-Selected): 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;SMPTE 259/274/292/296/372/424/425; | SDI:3G,HD SD-SDI(Auto/Manuel-Selected): 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60;SMPTE 259/274/292/296/372/424/425; |
| Output Video Format | / | SDI:3G,HD SD-SDI(Auto/Manuel-Selected): 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60;SMPTE 259/274/292/296/372/424/425; |
| Video Processing Color Depth | 8bit;10 bit;(4:0:0);(4:2:2);(4:4:4) | 8bit;10 bit;(4:0:0);(4:2:2);(4:4:4) |
| Input Audio Format | SDI embedded 4 channel 24 bit/48Khz | / |
| Output Audio | / | SDI embedded 4 channel 24 bit/48Khz |
| Signal Indicator | POWER-Green; VIDEO-Yellow | POWER-Green; Wireless RSSI-Blue(4 LEDs); POWER/VIDEO-Yellow |
| Frequency Band | 5.1-5.9GHz,configurable with China, North American, Europe, etc | 5.1-5.9GHz,configurable with China, North American, Europe, etc |
| Modulation Mode | OFDM 16QAM | OFDM 16QAM |
| Transmission Power | < 21dBm | / |
| Receiver Sensitivity | / | -75dBm |
| Occupied Bandwidth | 20/40MHz | 20/40MHz |
| Temperature Range | 0-40oC(operating condition);-20-60oC(Storage) | 0-40oC(operating condition);-20-60oC(Storage) |
| Transmission Cross Capability | Ghost-Eye 100M;150M;300M;400M | Ghost-Eye 100M;150M;300M;400M |
| Time Code | Ever 10 Second | Ever 10 Second |
| Compliance | FCC; CE; RoHS | FCC; CE; RoHS |

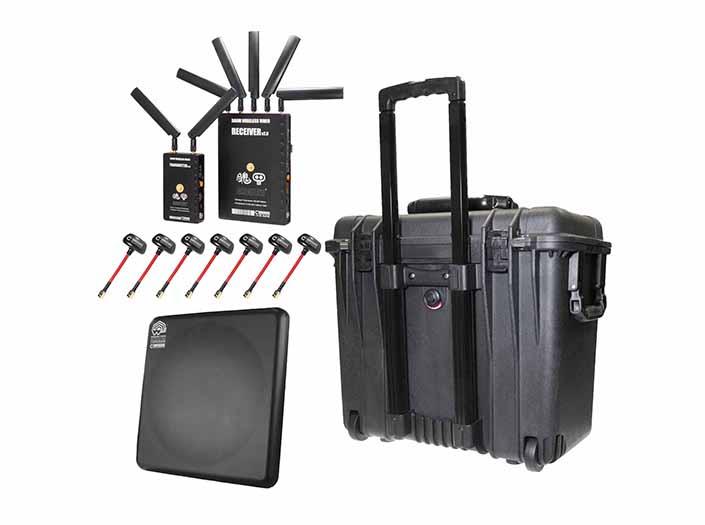

In The Box
1 x Wireless HDMI Video Transmitter 300M
1 x Wireless HDMI Video Receiver 300M
7 x Paddle Antennas
1 x Pannel Antenna
7 x 5G optimized cloverleaf antennas
1 x Cinegears Heavy Duty Steel Ball Joint Articulated Arm
1 x Cinegears Steel Mounting Clamp 12mm-55mm
2 x 4-Pin Lemo Power Cable for 300M System
1 x Waterproof Pelican Case for CINEGEARS 300M
