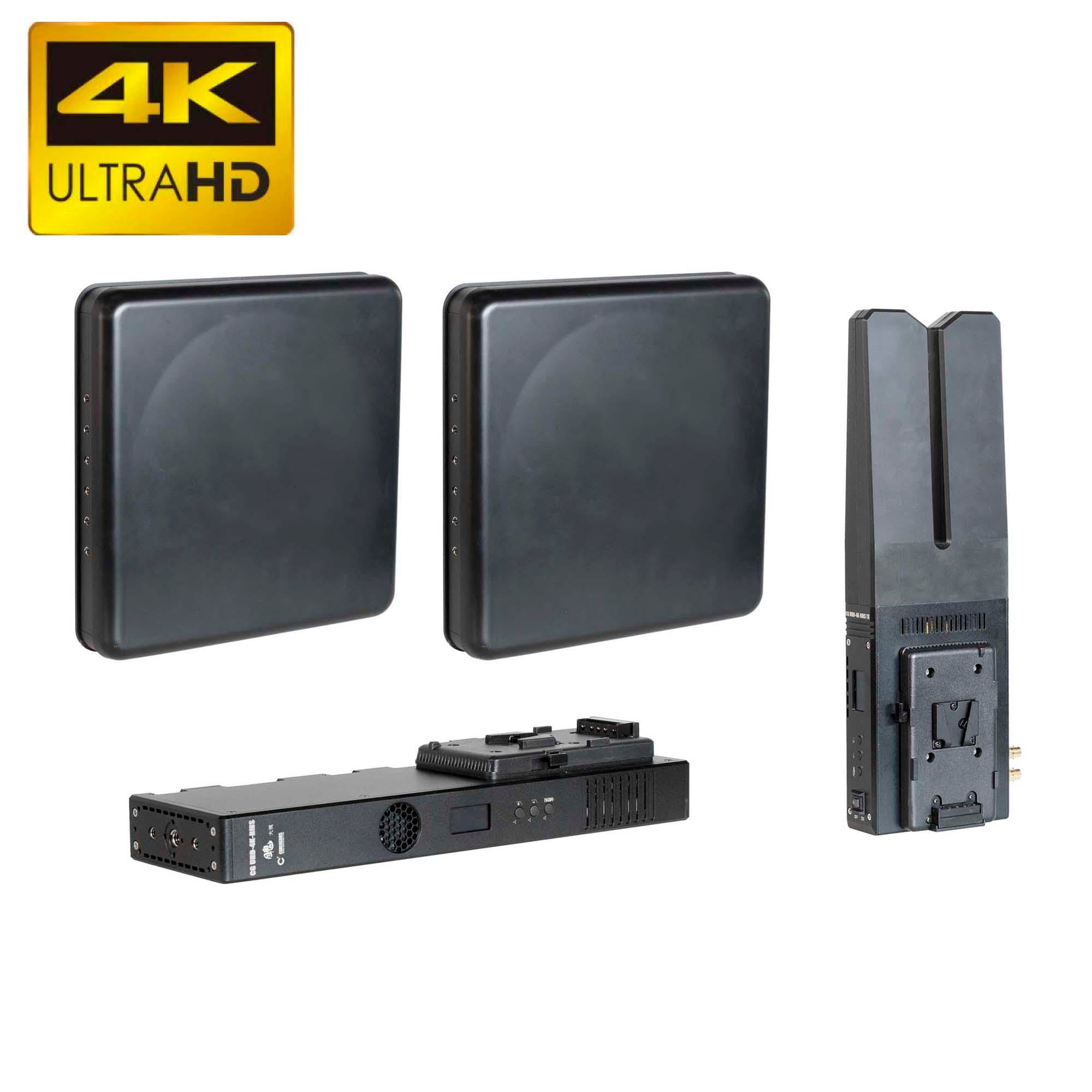

4K receiver with built-in 35x35cm panel antenna
Overview
Cinegears Wireless Video Transmission Systems have customizable software to fit the needs of any broadcasting environment. This proprietary technology is exclusive to Cine Gears Inc. and has been successfully used by BBC, CCTV, NHK, CNN, ABC, Show Cables, etc. for their major live broadcasting events. Cinegears Wireless Video has proven to be the best choice in wireless video transmission and live broadcasting streaming.
Year 2019, Cinegears 4K wireless video transmission systems with compact transmitters and receivers. Encrypted 4K broadcast video and audio signal will arrive in all its 10-bit, 4:4:2, 3840×2160, up to 60FPS, no latency, no compression. Features 1000 meters transmission range,110KM /Hour fast-moving subject compatible, 5GHz Amplifier, Live 5GHz Spectrum Scanning, Synchronization data, Metadata, Time Code, PTZ commands, Real-time Redundant signal management, Backup, Power management.
Highlights
- Up to 1000 (3200 feet) meters transmission range.
- Connect to unlimited receivers
- Hardware-encrypted broadcast-quality video
- 110KM /Hour fast-moving subject compatible.
- Signal of arriving in all its 10-bit, 4:2:2, 3840×2160.
- Transmitting video with 60FPS, no latency, no compression.
- Compatible with 5GHz Amplifier, Live 5GHz Spectrum Scanning.
- Featuring Synchronization data, Metadata, Time Code, PTZ commands.
- Bring real-time Redundant signal management, Backup, Power management.
RX:
| Item | Data specification | |
| Video Formats Supported |
2160p 23.98 / 24 / 25 / 30 / 50 / 60 (UHDTV1) 1080p 23.98 / 24 / 25 / 30 / 50 / 60 1080psf 23.98 / 24/ 25 1080i 50 / 59.94 / 60 720p 50 / 59.94 / 60 576p 576i 480p 480i 10bpc (30bit/px) or 12bpc (36bit/px) color depth(HDR) RGB, 4:4:4, 4:2:2, or 4:2:0 pixel encoding All format support 10-bit 4:2:2 color |
|
| Video encoding | None compression, XAVC, H.265 (HEVC) | |
| Frequency |
Free Frequency (EU): 5150 to 5250 MHz, 5725 to 5825 MHz Free Frequency (USA): 5150 to 5250 MHz, 5725 to 5825 MHz Free Frequency (JAP): 5150 to 5250 MHz Customized Frequency: 5150 to 7825 MHz |
|
| Transmission power | 17dBm | |
| Latency | ≤ 1ms | |
| Mechanical Interface | V-lock Battery / Gold mount, 12V DC input | |
| Bandwidth | 40MHz | |
| Power consumption | 9W | |
| Transmission range | open environment: up to 1000m | |
| Temperature | 0 ~ 65 C (Working); - 20 ~ 100 C (Storage) | |
| Over-voltage Protection | DC12V / 2A (7V ~ 36V) | |
| Product Size | 30.5cm (L) x 30.5cm (W) x 5cm (H) | |
| Audio Format | PCM, DTS-HD, Dolby True HD, Broadcast SDI embed 16 Channels | |
| Antenna Mode | Internal antenna / External antenna |
TX:
| Item | Data specification | |
| Video Formats Supported |
2160p 23.98 / 24 / 25 / 30 / 50 / 60 (UHDTV1) 1080p 23.98 / 24 / 25 / 30 / 50 / 60 1080psf 23.98 / 24/ 25 1080i 50 / 59.94 / 60 720p 50 / 59.94 / 60 576p 576i 480p 480i 10bpc (30bit/px) or 12bpc (36bit/px) color depth(HDR) RGB, 4:4:4, 4:2:2, or 4:2:0 pixel encoding All format support 10-bit 4:2:2 color |
|
| Video encoding | None compression, XAVC, H.265 (HEVC) | |
| Frequency |
Free Frequency (EU): 5150 to 5250 MHz, 5725 to 5825 MHz Free Frequency (USA): 5150 to 5250 MHz, 5725 to 5825 MHz Free Frequency (JAP): 5150 to 5250 MHz Customized Frequency: 5150 to 7825 MHz |
|
| Transmission power | 17dBm | |
| Latency | ≤ 1ms | |
| Mechanical Interface | V-lock Battery / Gold mount, 12V DC input | |
| Bandwidth | 40MHz | |
| Power consumption | 9W | |
| Transmission range | open environment: up to 1000m | |
| Temperature | 0 ~ 65 C (Working); - 20 ~ 100 C (Storage) | |
| Over-voltage Protection | DC12V / 2A (7V ~ 36V) | |
| Product Size | 39.5cm (L) x 13cm (W) x 4.25cm (H) | |
| Audio Format | PCM, DTS-HD, Dolby True HD, Broadcast SDI embed 16 Channels | |
| Antenna Mode | Internal antenna / External antenna |
RMS:
| Item | Data specification | |
| Video Formats Supported |
2160p 23.98 / 24 / 25 / 30 / 50 / 60 (UHDTV1) 1080p 23.98 / 24 / 25 / 30 / 50 / 60 1080psf 23.98 / 24/ 25 1080i 50 / 59.94 / 60 720p 50 / 59.94 / 60 576p 576i 480p 480i 10bpc (30bit/px) or 12bpc (36bit/px) color depth(HDR) RGB, 4:4:4, 4:2:2, or 4:2:0 pixel encoding All format support 10-bit 4:2:2 color |
|
| Video input and output | 2 x 4x3G SDI input, 1 x 12G SDI output | |
| Data IO | 6Pin Limo, Cat5 Ethernet | |
| Data range | 2 x 1000Meters | |
| Latency | ≤ 1frame | |
| Mechanical Interface | V-lock Battery / Gold mount, 12V DC input | |
| On board memory | 4 TB DDR 5 | |
| Power consumption | 12W | |
| Temperature | 0 ~ 65 C (Working); - 20 ~ 100 C (Storage) | |
| Over-voltage Protection | DC12V / 2A (7V ~ 36V) | |
| Product Size | 4cm (L) x 36.5cm (W) x 11cm (H) |
Wiring Diagram
Typical Cases
Typical Cases 1: a 4K RMS transmitter is connected to the SDI video source of the camera. A 4K RMS receiver set the wireless channel corresponding to 4K RMS transmitters.
Typical Cases 2: four RMS transmitters are connected to the SDI video source of the camera at the same time. A 4K RMS receiver set the wireless channel corresponding to RMS transmitters.
Typical Cases 3: A 4K RMS transmitter is connected to the SDI video source of the camera. Two 4K RMS receivers set the wireless channel corresponding to the 4K RMS transmitter. Two 4K RMS receivers set the wireless channel corresponding to the 4K RMS transmitter. After 4K RMS receivers are properly connected to the 4K RMS Switcher, the video signal output by the 4K RMS Switcher will seamlessly display the best signal quality of the two sets of pictures.
Typical Cases 4: you can have multiple sets on your filming site. Also, the 4K RMS transmitter can transmit to up to unlimited 4K RMS receivers.
