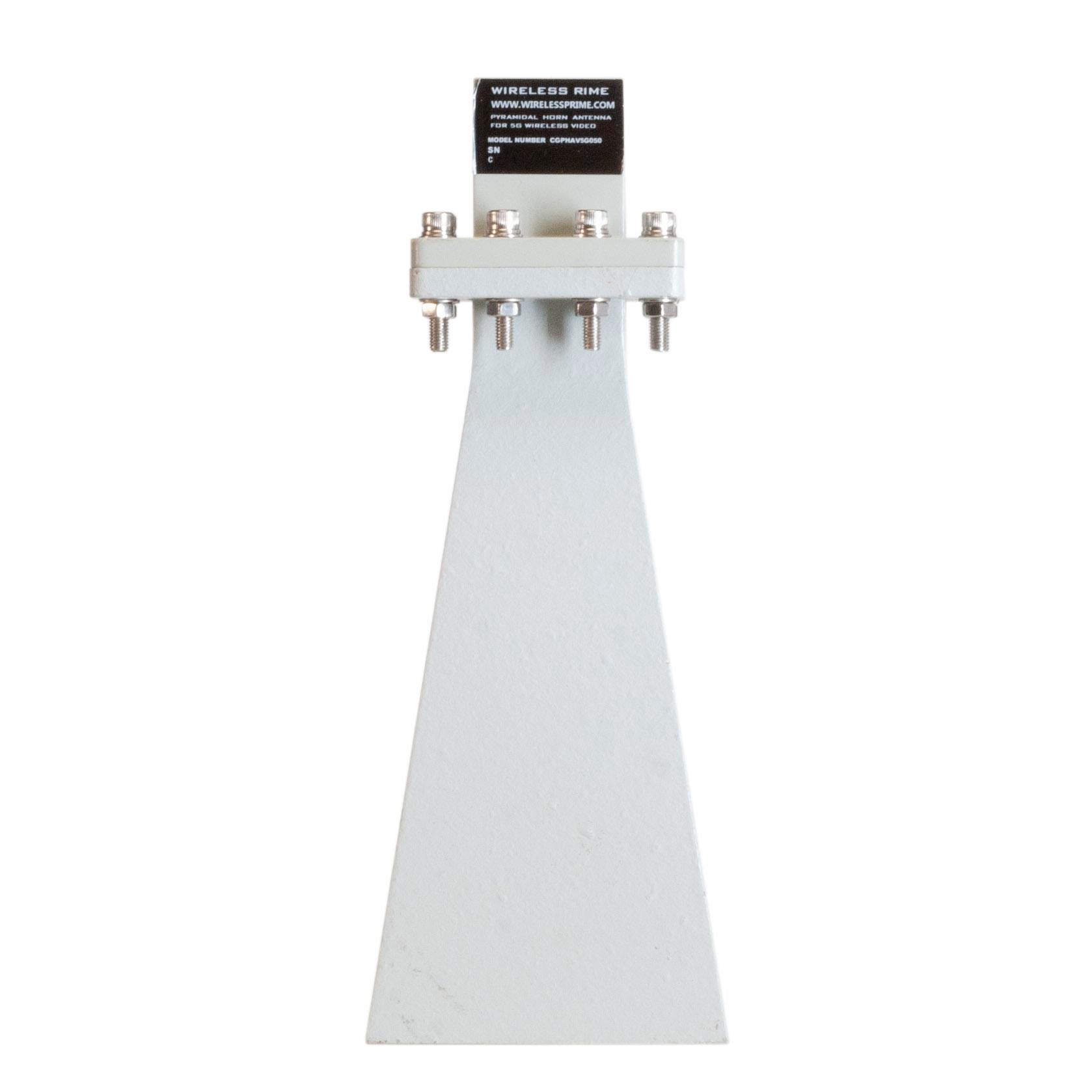

The 5G 32° Angle Horn Antenna is a specialized antenna designed to operate within the frequency range of 5.85 GHz to 8.20 GHz. This antenna features a square cover flange and offers a gain ranging from 9 dBi to 11 dBi across the specified frequency band.
Manufactured with precision using electrode-cut copper sections, this horn antenna ensures accurate, consistent, and reliable performance. It falls under the category of waveguide horns, specifically covering the WG14, WR137, and R70 frequency bands.
The 5G 32° Angle Horn Antenna is well-suited for various applications, including Antenna Ranges, Antenna Gain Measurements, and System Setups. It offers both V-Plane and H-plane beamwidths, ranging from 55 degrees to 60 degrees, providing flexibility in signal coverage and directionality.
Features:
- Precision machining and gold plating
- Low standing wave ratio
- light in mass
- Linear polarization
- Low echo loss
- Rectangular waveguide interface
- Low sidelobes and symmetric radiation
Specification：
| Frequency Range (GHz)： | 5.85-8.20 |
| Gain (dB)： | 10 Typ. |
| HPBW： | H-Plane 55°/V-Plane 55° |
| Waveguide type： | WR137 |
| Material： | Al |
| Output： | FBP70 N-F or SMA-F |
| Weight (Kg)： | 0. 6 Around 0. 7 Around |
Product size：
Gain and Standing Wave Ratio:
Direction diagram：
In the Box:
1x Horn Antenna
