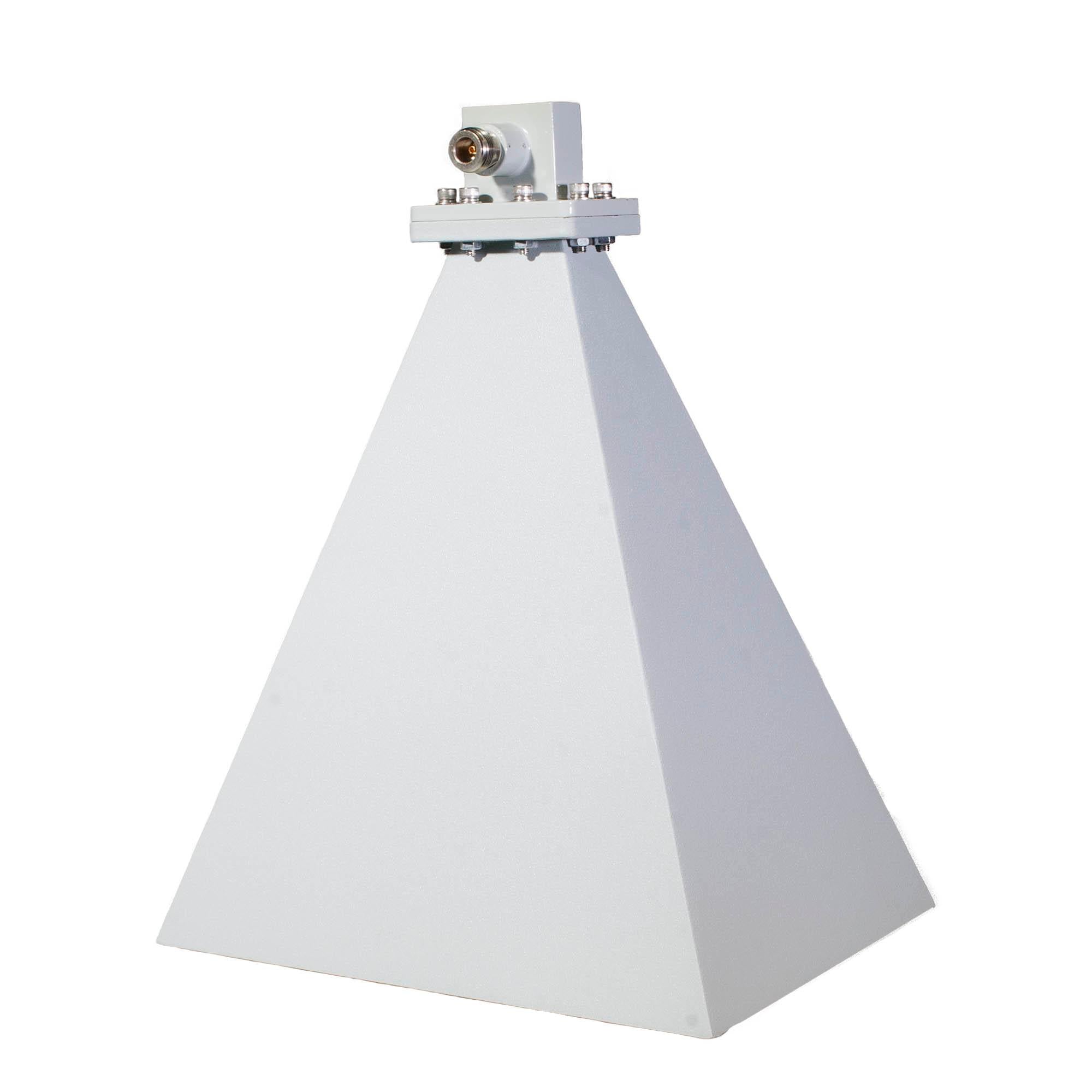

The 5G 60° Angle Horn Antenna is a high-performance antenna with an impressive GAIN ranging from 19 to 21 dBi across the frequency band. It features a square cover flange and operates within the frequency range of 5.85 to 8.20 GHz. This antenna is specifically designed for waveguide horn covers WG14, WR137, and R70 bands. Its construction utilizes precision electrode-cut copper sections, ensuring precise, consistent, and reliable performance. The antenna is well-suited for a variety of applications, including Antenna Ranges, Antenna Gain Measurements, and System Setups. It offers both V-plane and H-plane beamwidth, ranging from 18 to 23 degrees.
Features:
- Precision machining and gold plating
- Low standing wave ratio
- light in mass
- Linear polarization
- Low echo loss
- Rectangular waveguide interface
- Low sidelobes and symmetric radiation
Specification：
| Frequency Range (GHz)： | 5.85-8.20 |
| Gain (dB)： | 20 Typ. |
| HPBW： | H-Plane 18°/V-Plane 18° |
| Waveguide type： | WR137 |
| Material： | Al |
| Output： | FBP70 N-F or SMA-F |
Product size:
Gain and Standing Wave Ratio:
Direction diagram：
In the Box:
1x 5G Pyramidal Horn Antenna 60º Angle
