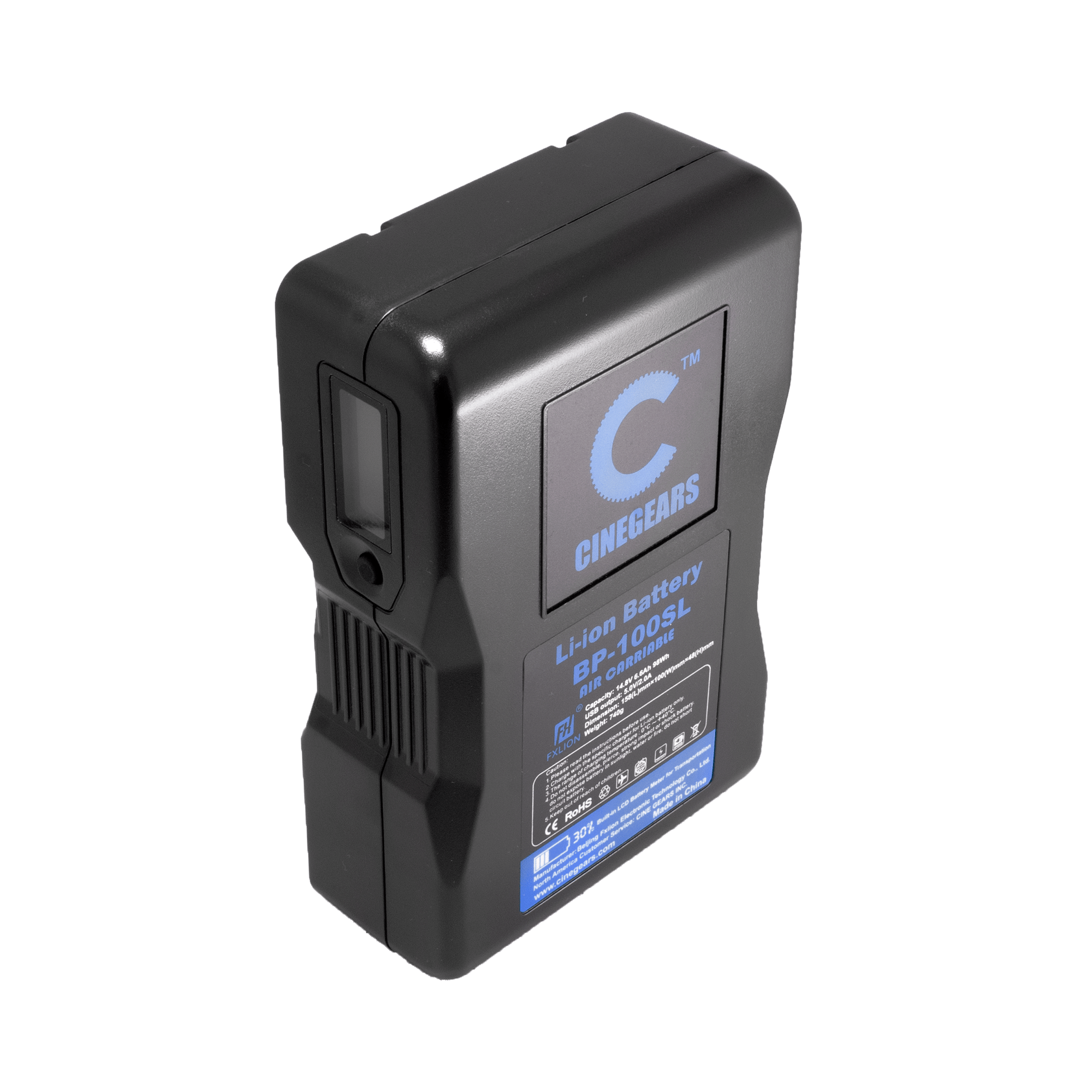

CINEGEARS 100Wh Compact V-Mount Battery

Product Description

The provided text appears to be a promotional or marketing content describing lithium-ion batteries offered by Cine Gears, particularly those sourced from FXLion in Beijing. Here's a summary of the key points:

1. High-Quality Lithium-Ion Batteries: Cine Gears offers high-quality lithium-ion batteries sourced from FXLion, known for their safety, durability, and long-lasting performance.

2. LED Level Display: Both models of batteries feature a built-in 4 LED level display, making it easy for users to monitor the battery's charge status during use.

3. Wide Temperature Range: These batteries are designed to withstand extreme temperatures, ranging from -20°C to +55°C, ensuring they can be used in various shooting conditions.

4. Rapid Charging: The batteries offer rapid charging times. The smaller 100Wh/6.6Ah battery charges in 270 minutes, while the larger 250Wh/16.75Ah battery charges in 620 minutes.

5. Protection Circuit Design: Both battery models incorporate an innovative protection circuit design to safeguard against various types of damage that could affect battery performance.

6. Certifications: The batteries are certified through official channels for safety and quality assurance. It mentions the CE (Conformité Européenne) mark, indicating compliance with EU standards within Europe.

7. Air Travel-Friendly: The 100Wh Battery Pack is suitable for air travel due to its precise size, allowing users to carry multiple batteries in hand or hold luggage, reducing the cost and hassle of purchasing batteries at different location shoots.

8. Quality and Value: The text emphasizes that the quality of these batteries justifies their price, highlighting their safety features and solid construction to meet the needs of filmmakers and other professionals in the cinematic industry.

  Specifications

• Capacity: 14.8V / 6.6Ah / 100Wh
• USB Output: 5.0V/1.0A
• Dimensions: 152(L) mm×100(W) mm×63(H) mm
• Weight: 790g
• Charger Options: All Fxlion cable chargers as well as V-mount chargers. SONY BC-L50/70 chargers.
• Charging Time: ~270min

  In the Box:

• 1 x 100Wh Compact V-Mount Battery

Concept of Design:

• Inclusiveness design concept. Any V-mount battery can be added upon and used together with BP-F100U.
• Meets the requirements of air transportation.Can be carried with you during flights.
• Patent technology. Streamlined back plate design.
• Uninterrupted shooting can be achieved with BPF100U.

• USB port available. More options available.
• Suitable for HD cameras, Red-One and Alexa.

Case Stimulation:

• Assuming the power consumption is 30Wh for the shooting equipment. Power Supply: BP-F100U x1 and BP-2000×2 and PL-Q80B x1.
• Fix BP-F100U directly onto the camera, and add a BP-2000 upon BP-F100U to supply power from BP-2000.
• In this way, the shooting duration would last about 160h continuously. The replaced BP-2000 can be charged by PL-Q80B.
• In this way, uninterrupted shooting can be achieved.
• When BP2000 drops low, it takes about 5 minutes to change a new piece of BP2000.
• The power supply would not be cut during changing.

Caution:

1. Please read the instruction before use.
2. Charge with the specific charger for Li-ion battery only.
3. The range of charging temperature: 0°C ~ +40°C.
4. Do not disassemble, pierce, strike, drop or shock the battery. Do not expose battery to sunlight, water or fire. Do not short circuit the battery.
5. Keep out of reach of children.
